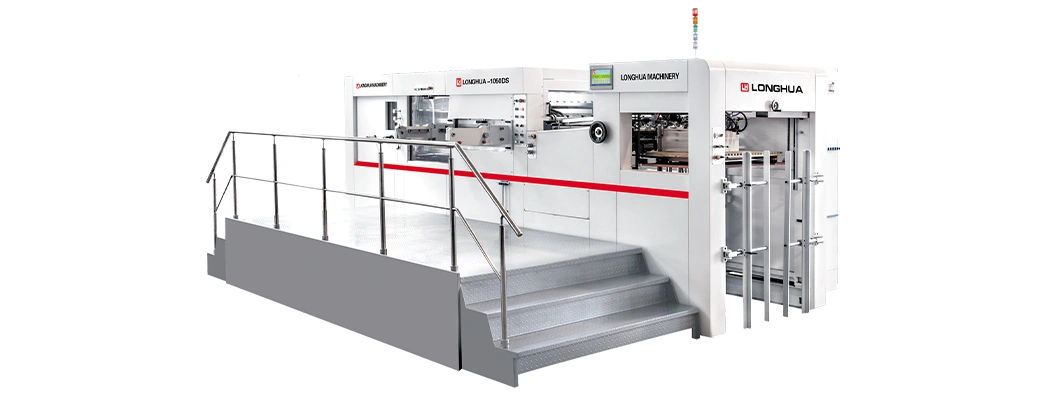

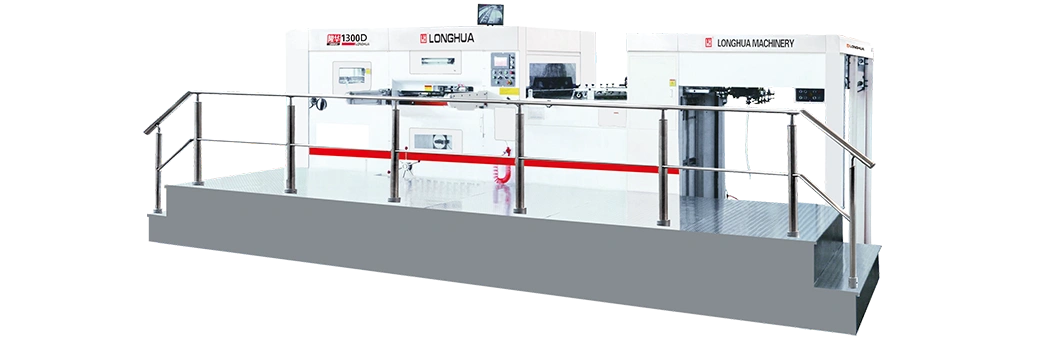

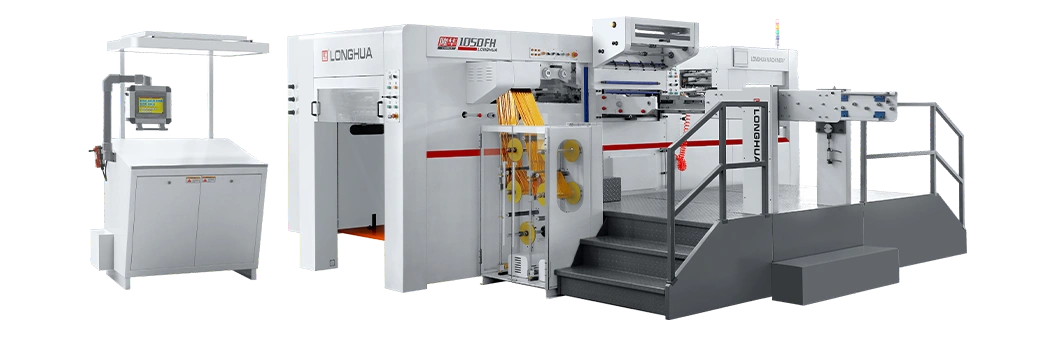

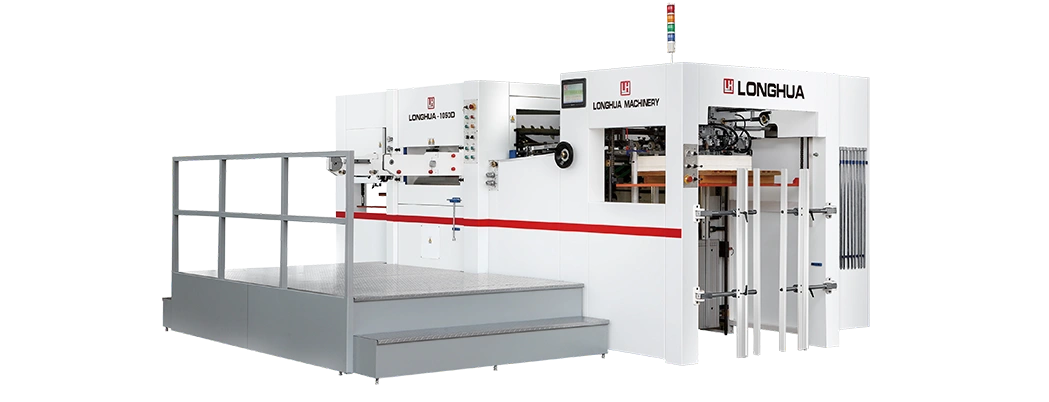

Automatic Deep Embossing Die Cutting Machine

Zone12 The heating temperature area can be controlled separately, according to the local product temperature, save electricity, easy to control product quality.

Increase the thickness of the flywheel and side panels to achieve greater pressure and stability.

Four suction nozzles and five moving nozzles and all the nozzles are adjustable separately

Adjustable side lays (one set in each side)

Automatic lifting device driven by double speed motors in paper table is to lower the labor intensity and improve the productivity

Paper presser and front lay ensure the paper pushed into die cutting unit smoothly.

Touch roller device give more time for the operator feeding the paper, lower the work intensity.

Worm and worm wheel is made by high grade wear-resistant material and machined by high precision machine tool to ensure long service life.

Key components (crankshaft, worm screw, worm gear, toggle lever shaft) are made of imported high-grade alloy steel and hand-finished.

High precision intermittent device, high torque pneumatic clutch ensure running stable and reliable.

Pneumatic together with mechanical plate locking ensure the safety of plate locking.

Electric pressure regulation, Japanese Omron pressure control system, with higher accuracy.

Unique Pressing Transferring Unite, the board are transferred under pressure from the roller. And it avoid the crash between the roller and board.

Side lay has two functions, pushing and pulling which can be adjusted according to the board.

PLC controls the operation of the whole machine and the fault monitoring system

Advanced European and American national safety standards (CE standards) are adopted for electrical components and electrical circuits.

Pneumatic sampling device ensure the safety of operator.

Automatic lifting of delivery platform

Paper full early warning device

5 Imported gripper bars, each with 10 high-precision steel gripper jaws and corresponding gripper pads

Gripper bar drive chain tensioner buffer device

PLC-controlled automatic main chain lubrication system. All the key moving part, chains and touch points are lubricated automatically by central oil pump.

The auxiliary delivery unit uses a curtain-style up/down switching mechanism, greatly facilitating operation and making it particularly suitable for small-format multi-up products

Uses segmented adjustable brushes and paper flattening air blowers to stabilize finished products in the delivery section
