Dual Station Deep Embossing Hot Stamping Die Cutting And Stripping Machine

The driving gear ensures high speed of die cutting together.

The die cutting frame can prevent the die cutting plate from drooping or separating effectively.

Electric pressure regulation, Japanese Omron pressure control system, with higher accuracy.

Honeycomb plate using casting material, low coefficient of thermal expansion, not easy to deformation.

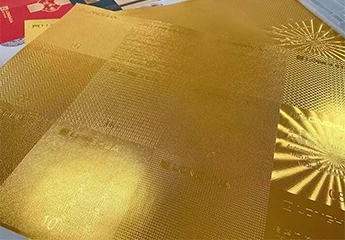

Full-width longitudinal foil feeding system allows simultaneous longitudinal and lateral foil stamping, reducing foil consumption and saving foil replacement time.

Both longitudinal and lateral directions are equipped with foil separation air blowing devices, suitable for large-area foil stamping.

Alarm triggers if foil length is less than 6m; computer-controlled foil monitoring system displays remaining and used foil lengths.

Equipped with a 3-axis independent foil feeding system, ensuring foil feed error is controlled within 1mm, significantly saving aluminum foil. It provides more stable tension, offering effective assurance for high-speed, stable, and accurate foil stamping.

There has brush rewinding foil function. And it has equipped with a re-coil collection waste foil device. The buffer force prevent the foil from broken.

Control the quality of the product, you can adjust the Zone temperature and some other operation from the display screen.

Shorten the time for changing Plate, Improve the production
efficiency.

Triple-linkage waste stripping device with harmonious, precise and powerful movements can effectively clear various irregular waste materials.

Gas-spring safety door ensures operational security.

The waste discharge device adopts cam drive for smooth and reliable operation.The stripping die moves on linear bearings, and the upper and lower die frames re completely identical. When the stripping function is not required, the paper stripping action can be disengaged and paused.

Four suction nozzles and five moving nozzles and all the nozzles are adjustable separately

Adjustable side lays (one set in each side)

Automatic lifting device driven by double speed motors in paper table is to lower the labor intensity and improve the productivity

Paper presser and front lay ensure the paper pushed into die cutting unit smoothly.

Touch roller device give more time for the operator feeding the paper, lower the work intensity.

Worm and worm wheel is made by high grade wear-resistant material and machined by high precision machine tool to ensure long service life.

Key components (crankshaft, worm screw, worm gear, toggle lever shaft) are made of imported high-grade alloy steel and hand-finished.

High precision intermittent device, high torque pneumatic clutch ensure running stable and reliable.

Pneumatic together with mechanical plate locking ensure the safety of plate locking.

Unique Pressing Transferring Unite, the board are transferred under pressure from the roller. And it avoid the crash between the roller and board.

Side lay has two functions, pushing and pulling which can be adjusted according to the board.

PLC controls the operation of the whole machine and the fault monitoring system

Advanced European and American national safety standards (CE standards) are adopted for electrical components and electrical circuits.

Pneumatic sampling device ensure the safety of operator.

Automatic lifting of delivery platform

Paper full early warning device

7 Imported gripper bars, each with 10 high-precision steel gripper jaws and corresponding gripper pads

Gripper bar drive chain tensioner buffer device

PLC-controlled automatic main chain lubrication system. All the key moving part, chains and touch points are lubricated automatically by central oil pump.

The auxiliary delivery unit uses a curtain-style up/down switching mechanism, greatly facilitating operation and making it particularly suitable for small-format multi-up products

Uses segmented adjustable brushes and paper flattening air blowers to stabilize finished products in the delivery section
