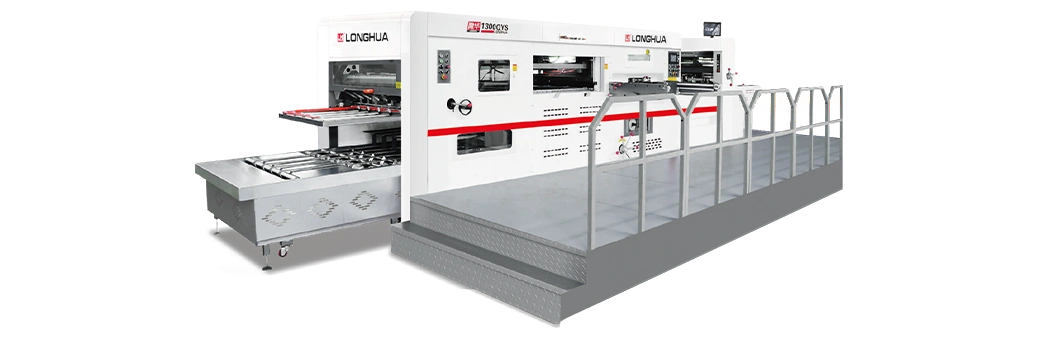

Automatic Stripping Die-cutting And Creasing Machine

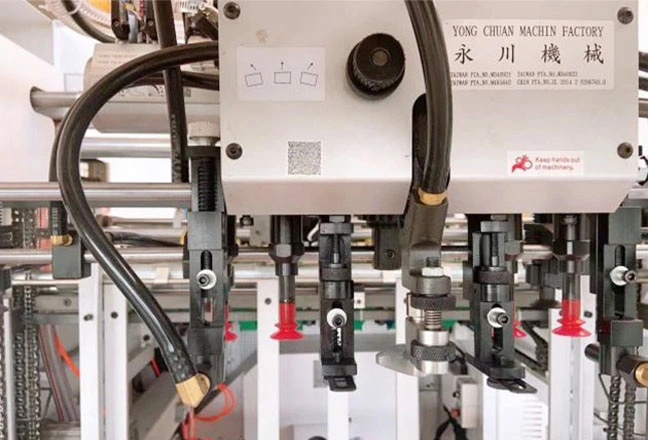

High speed feeder, made of special alloy material, adopts 4 suction 4 feed strong suction nuzzles. And it can be adjusted the front, back, high and low, according to the paper, ensures the stable paper feed from 60 g/m2 thin cardboard to 2000 g/m2 carton. The eliminating static electricity device, makes paper feeding more stable and ensures a high precision of subsequent work.

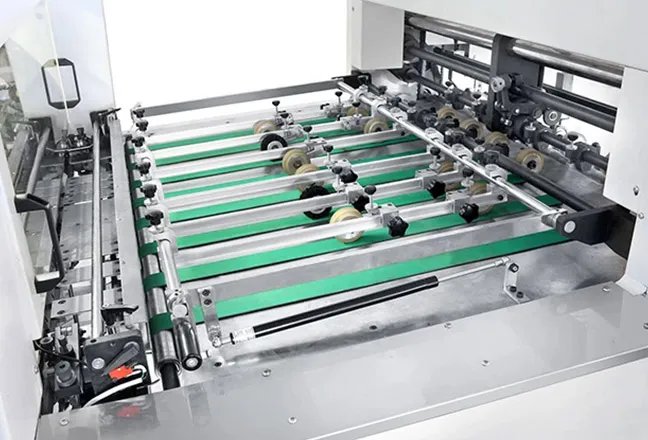

Tilting paper feed table, more suitable for the transport and positioning of thin paper under high speed. The pull and push gauges can be adjusted according to the paper situation, easy to operate. In place deceleration mechanism to make the conveying process more stable. Double paper check device, ensures the safety of the paper feeding and avoid paper waste.

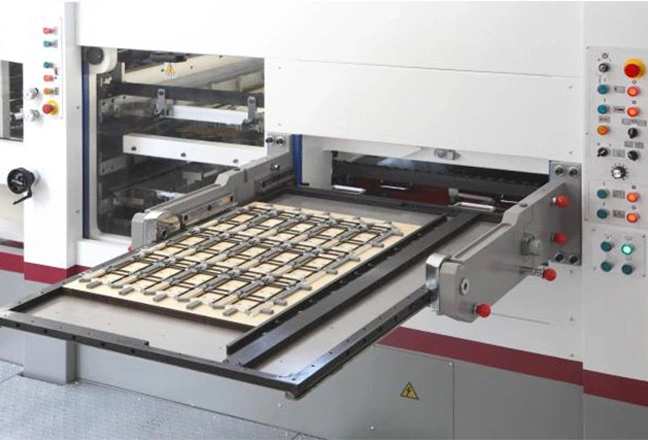

German imports of die cutting bottom, hardness up to 53HRC. Pneumatic locking plate, pneumatic clutch, coupled with novel drive system, to achieve high speed stable die cutting. Unique die cutting board and frame effectively prevent die cutting plate sagging or falling off.

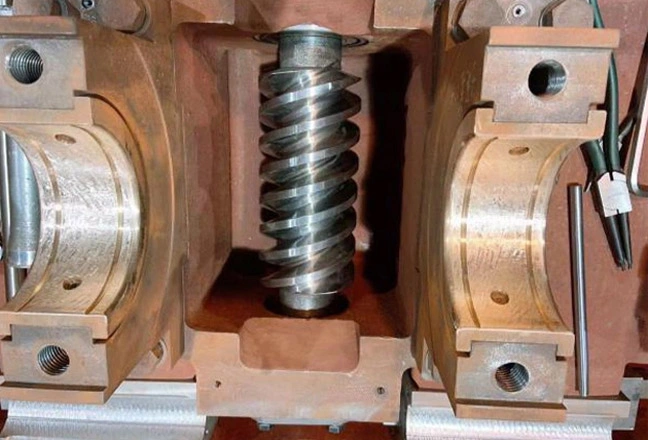

The main part of the main engine , crankshaft, worm&gear, worm wheel, elbow, are all made of imported high end alloy material, coupled with our unique hand-work scraping craft, improve the operation life and stability of the main motor greatly. The turbo crank drives the high precision plane die cutting table, which ensures the level and accuracy of die cutting work.

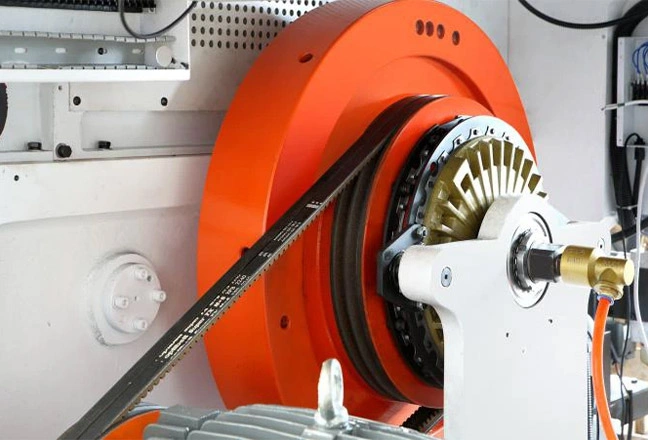

Pneumatic clutch imported from OPMI Italian, which effectively reduce the noise during machine operation and the aerodynamic impact. Combined with electric digital display, it controls the rise and fall pressure of die cutting platform simply and accurately.

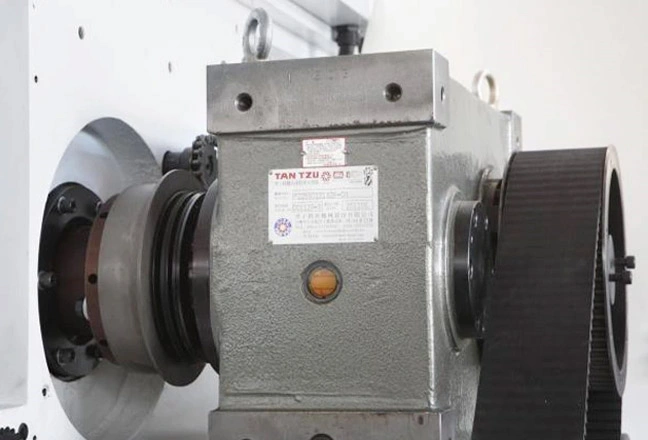

Index driver and torque limiter imported from Taiwan , which uses the latest technology multi-chip parallel CAM index chain-row transmission device with long service life. The high sensitivity not only ensures the safety of the machine runing ,and also the operator.

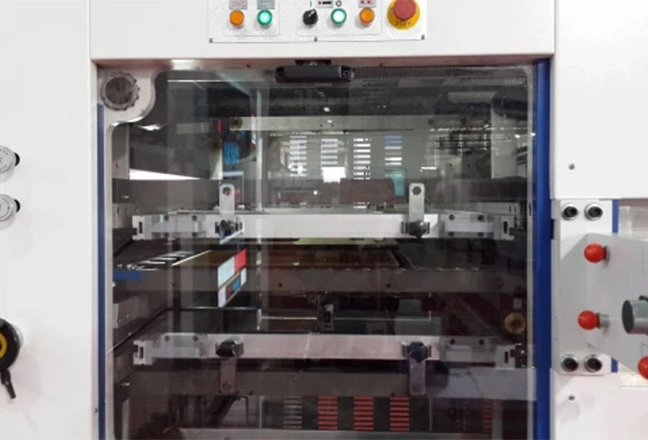

The tooth row and the chain are made of special super rigid aluminum alloy from Taiwan, the surface of them is anodized, which achieve a high precision die cutting and embossing work on  the high speed, also controls perfectly. The main transmission chain of the tooth row adopts the special chain of Reinaud Germany, the strength of the which is enhanced by 45%, extends the service life and improves the stability of the machine operation.

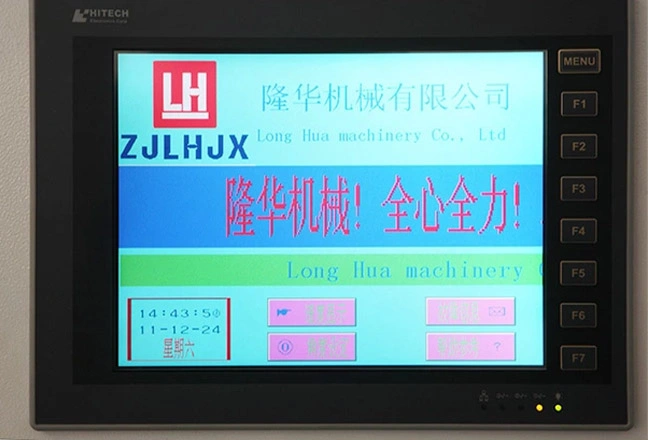

The machine adopts imported high resolution man-machine interface for HMI, which monitor and display the running state of the machine in real time, making the adjustment and troubleshooting more convenient , fast and safe. MITSUBISHI PLC, makes the operation more fast and stable.

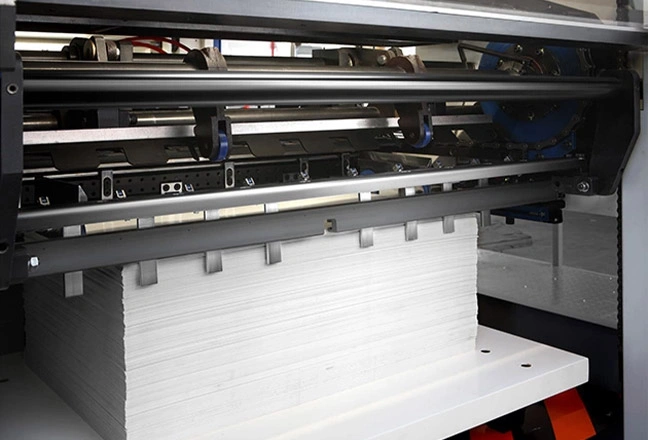

The non- stop delivery device makes automatic paper collection orderly, improves work efficiency greatly. Non-stop sampling device views the die cutting paper situation at any time. Stepped-adjustable brush and paper blowing device collect finishes products orderly.

Paper

Heavy cardboard

Corrugated board

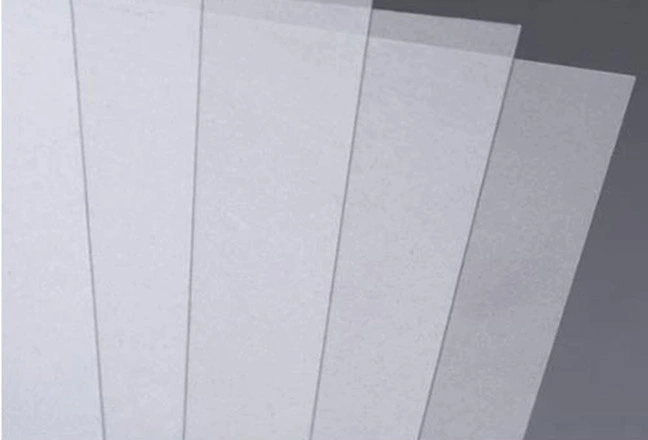

Semi-rigid plastic

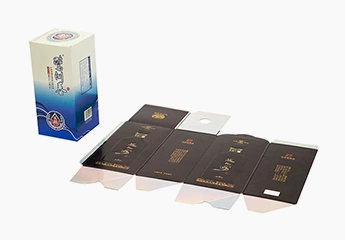

Paperboard
